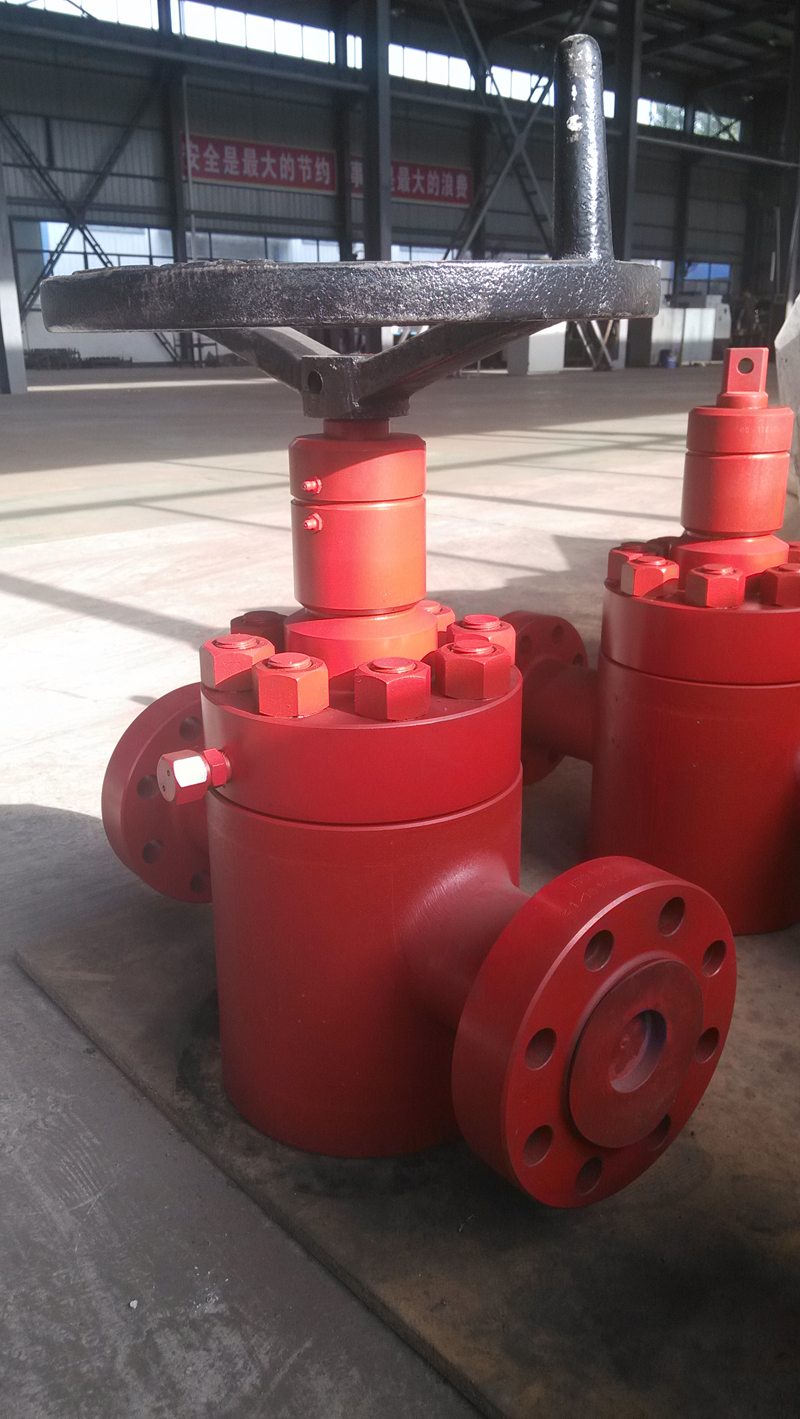

Gate Valve

With reliable performance and double direction sealing structure, gate valve can perform well when used in high pressure service condition. In addition, it canbe used in oil field wellhead, X-mas tree and manifold system where pressure are in range of 2000psi to 20000psi.

Main Feature:

can be used in medium H2S; Casting steel valve body/forged valve bonnet; Low operation torque; Metal to metal

valvebody/valve bonnet seal; Metal to metal wedge/valve seat seal; Can replace the packing online; Gate, seat surface coating alloy; After a two-way valve seal.

Basic Parameters:

Size: 1-13/16"~9"

Working Pressure: 2000 psi~20000psi

Temperature Level: L,P,U,X

Material Class: AA~HH

Specification Level: PSL1~PSL3

Performance Level: PR1

Design Performance Standards: API 6A
